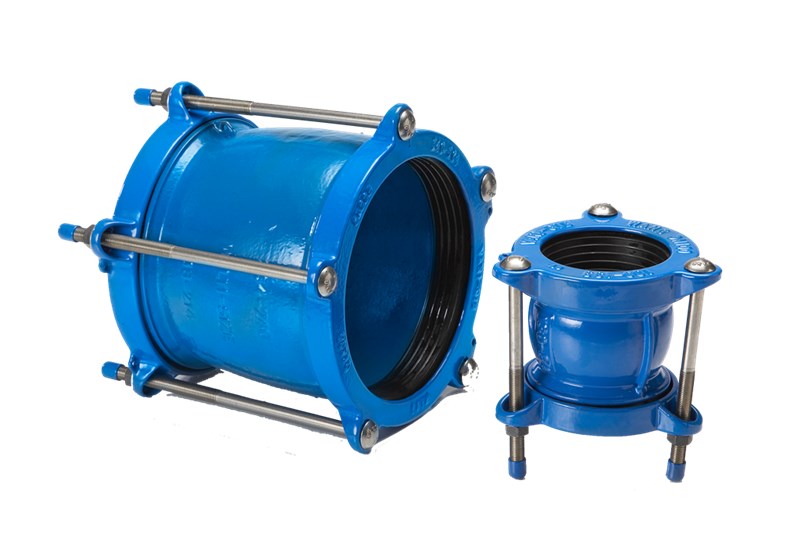

AVK SUPA-GIB STEP COUPLING, DN80-DN300

DI Sleeve, A4 Fasteners, NBR Seal, PN16

AVK Wingfield Plant

Contact

AVK Australia Civil

559A Grand Junction Road Wingfield SA 5013 Sales and Technical enquiry

Non-tensile coupling for connecting pipes with different diameters, for water and neutral liquids to max. 60°C

Variable coupling for use on Cast Iron, Ductile Iron, Steel, PVC-U, PVC-M, PVC-O, AC and Copper pipes.

Manufactured by AVK WANG

Variant 602/525-001
Connection: Supa Coupling
Material: Ductile Iron
DN: DN80 - DN300
PN: PN16

Features

  • For water and sewer applications to max 60°C
  • Angular deflection up to + - 3 degrees (total 6 degrees)
  • 16 bar / 160 meters allowable operating pressure (AOP)
  • Provide no longtiudinal joint restaint

Downloads

Datasheet
Certificate(s)
Installation, Operation & Maintenance
Flyer

Reference nos. and dimensions:

Scroll for more info
AVK ref. no. DN/DN
 Product
PN Class		 Seal range
mm		 Seal range 2
mm		 A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 No. of
bolts		 Theoretical
weight/kg
602-5-0103-0133-25 80-100 PN16 88-103 101-133 261 176 240 12-15 6° 3 8.1
602-5-0133-0182-27 100-150 PN16 109-133 158-182 310 216 350 15-80 6° 3 12
602-5-0147-0182-27 125-150 PN16 123-147 158-182 310 216 350 15-80 6° 3 12
602-5-0238-0264-27 200-225 PN16 214-238 240-264 392 216 350 15-80 6° 5 20
602-5-0264-0296-27 225-250 PN16 240-264 272-296 424 216 350 15-80 6° 5 22
602-5-0334-0354-27 300-300 PN16 310-334 330-354 492 216 350 15-80 6° 5 33
Enquiry
Scroll for more info

Components

1. Barrel Ductile iron GJS-400-15 (GGG-40)
2. Flange Ductile iron GJS-400-15 (GGG-40)
3. Bolt Stainless steel A4
4. Nut Stainless steel A4, PTFE coated
5. Washer Stainless steel 316
6. Gasket NBR rubber
7. Flange Ductile iron GJS-400-15 (GGG-40)

Test/Approvals

  • Test according to AS/NZS 4998 - PN16 - 24 bar @ 120 minutes

Standards

  • Designed to: AS/NZS 4998
