AVK DUCTILE IRON DISMANTLING JOINT, PN16
EPDM Seal, A4 Fasteners, AS/NZS 4087 B5, DN80-DN1200
Contact
AVK Australia Civil
559A Grand Junction Road Wingfield SA 5013 Sales and Technical enquiry
AVK Series 265 Dismantling Joints in ductile iron provide easy installation and disassembly of flanged pipework and fittings, or flanged equipment such as valves, meters and pumps. The dismantling joint also allows for axial displacement of pipework during construction.
| Variant 265/91-003 | |
|---|---|
| Connection: | Flanged |
| Material: | Ductile Iron |
| DN: | DN80 - DN1200 |
| PN: | PN16 |
Features
- Compensates for axial displacement of the pipe during installation and dismantling with telescopic action between the inner and outer flange body
- Up to +/- 25mm axial adjustment
- Coated according to AS4158 with 350µm internal, 300µm external epoxy
- Seal in drinking water approved EPDM.
- All tie rods, nuts and washers in stainless steel A4 with DeltaSeal coating on the nuts for protection and anti friction
- Long tie rods in all bolt holes make for a stiff and robust design
- Remains tight in part vacuum, up to 0.8 Bar negative pressure (200 mBar absolute)
Downloads
Datasheet
Certificate(s)
Installation, Operation & Maintenance

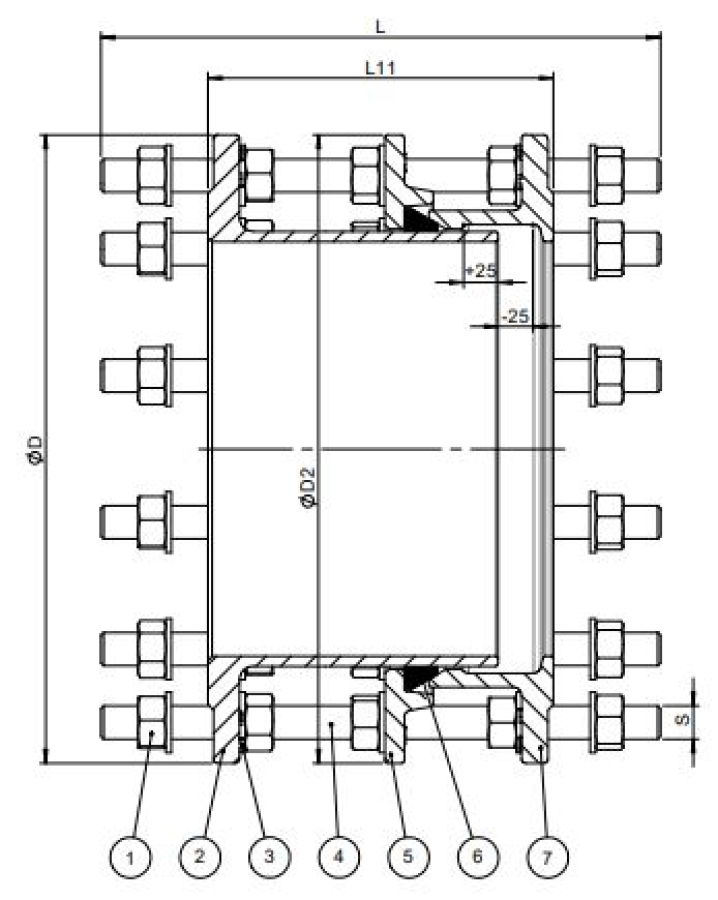

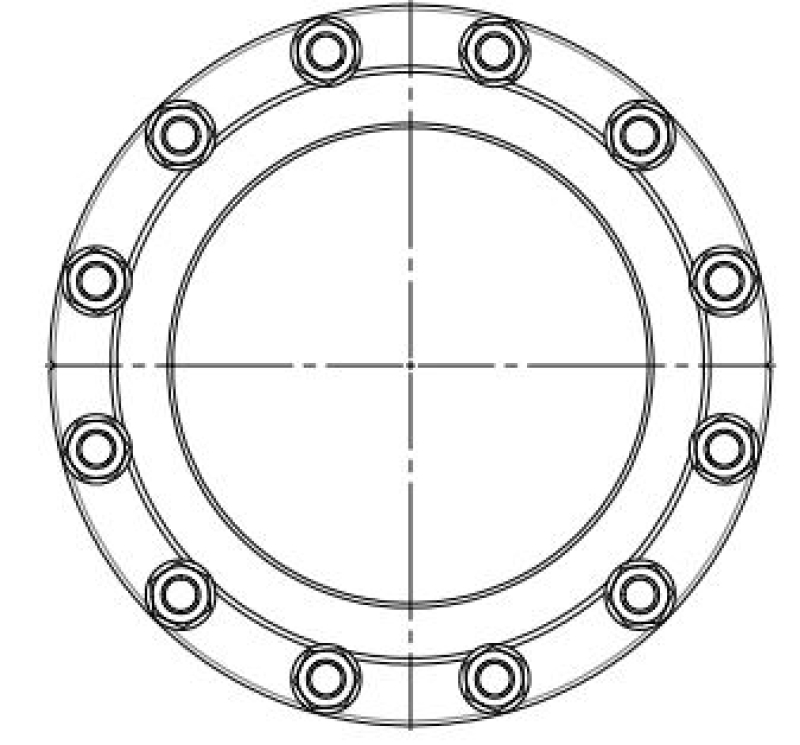

Reference nos. and dimensions:
Scroll for more info
| AVK ref. no. | DN mm |
Flange drilling |
L11 mm |
L mm |
D mm |
S mm |
Theoretical weight/kg |
|---|---|---|---|---|---|---|---|
| 265-9-0080-12-34041200 | 80 | AS 4087 B5 | 200 | 325 | 185 | M16 | 12 |
| 265-9-0100-12-34041200 | 100 | AS 4087 B5 | 200 | 325 | 215 | M16 | 16 |
| 265-9-0150-12-34041200 | 150 | AS 4087 B5 | 200 | 325 | 280 | M16 | 26 |
| 265-9-0200-12-34041200 | 200 | AS 4087 B5 | 220 | 340 | 335 | M16 | 35 |
| 265-9-0225-12-34041200 | 225 | AS 4087 B5 | 220 | 340 | 370 | M16 | 41 |
| 265-9-0250-12-34041200 | 250 | AS 4087 B5 | 230 | 370 | 405 | M20 | 53 |
| 265-9-0300-12-34041200 | 300 | AS 4087 B5 | 250 | 395 | 455 | M20 | 73 |
| 265-9-0375-12-34041200 | 375 | AS 4087 B5 | 250 | 420 | 550 | M24 | 118 |
| 265-9-0400-12-34041200 | 400 | AS 4087 B5 | 270 | 440 | 580 | M24 | 123 |
| 265-9-0450-12-34041200 | 450 | AS 4087 B5 | 270 | 440 | 640 | M24 | 142 |
| 265-9-0500-12-34041200 | 500 | AS 4087 B5 | 280 | 450 | 705 | M24 | 182 |
| 265-9-0600-12-34041200 | 600 | AS 4087 B5 | 300 | 490 | 825 | M27 | 273 |
| 265-9-0750-12-34041200 | 750 | AS 4087 B5 | 320 | 530 | 995 | M30 | 415 |
| 265-9-0900-12-34041200 | 900 | AS 4087 B5 | 320 | 550 | 1175 | M33 | 589 |
| 265-9-1000-12-34041200 | 1000 | AS 4087 B5 | 340 | 580 | 1255 | M33 | 646 |
| 265-9-1200-12-34041200 | 1200 | AS 4087 B5 | 360 | 610 | 1490 | M33 | 942 |
2D/3D drawings
Enquiry
Scroll for more info
Components
| 1. | Flange | Ductile iron 450-10 |
| 2. | Gasket | EPDM rubber |
| 3. | Gland flange | Ductile iron 450-10 |
| 4. | Flanged spigot | Ductile iron 450-10 |
| 5. | Stainless steel A4 | |
| 6. | Nut | Stainless steel A4 anti friction |
| 7. | Washer | Stainless steel A4 |
Test/Approvals
- Potable water approved to AS/NZS 4020
Standards
- Flange drilling: AS/NZS 4087 B5
